Summit II 650W EZ-GO 48V Battery Charger – 13.5A Triangle 3-Pin | Lester®

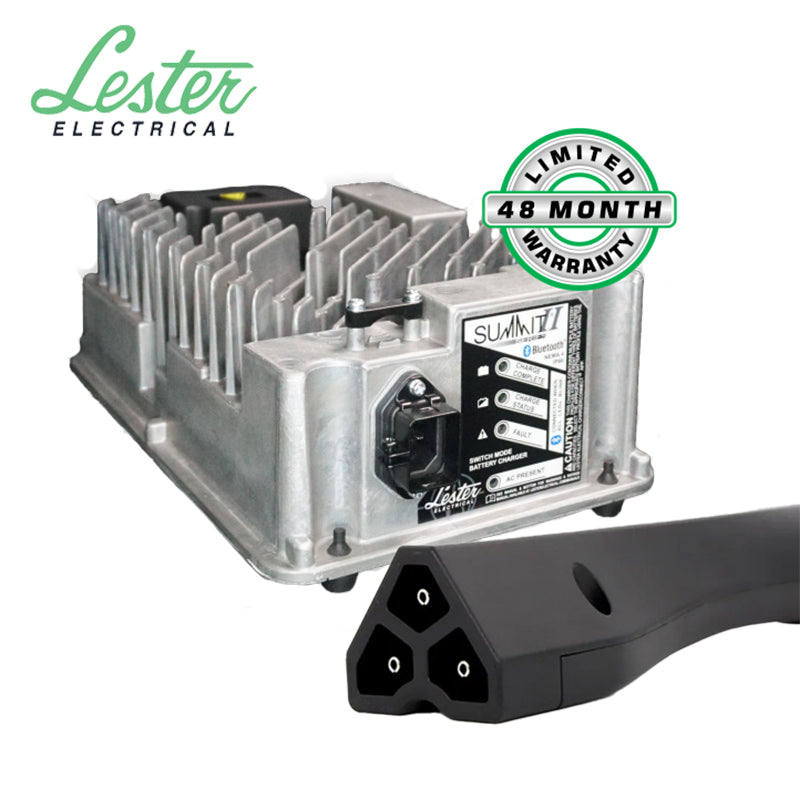

Lester Summit II EZGO 48V Battery Charger for TXT and RXV Models – 13.5 Amp, 48 Volt, 650W – 3-pin Triangle Paddle - FREE SHIPPING!

Lester Electrical's new  650 Watt Summit Series II chargers offer top-tier performance and features, marking a significant advancement in the company's 60+ year history. These EZGO RXV and TXT 48-volt chargers are suitable for all EZ-GO electric golf carts utilizing the triangle 3-pin 48-volt connector.

Key Highlights Include

• Bluetooth® Integration: The chargers feature wireless communication with apps for Apple and Android devices, allowing users to monitor charge cycles, adjust battery profiles, and track charge history.
• Efficient and Durable: With high-frequency switch-mode technology, the chargers are highly efficient and compliant with the latest DOE, CEC, and NRCan standards. They are built to withstand extreme conditions and are tested for reliability.
• Cloud Connectivity: Users can upload charge data to the cloud for global access and use the cloud to update charging profiles.
• Flexibility and Expertise: The chargers support universal AC input, are customizable with DC and signal connections, and offer multi-voltage support. Lester Electrical, an employee-owned company, brings over 60 years of experience in designing industrial battery chargers.

Tips for maximizing battery life in your golf cart!

48V EZGO Charger Application

• EZ-GO TXT and RXV 48 Volt Models w/ Triangle 3-Pin Connector (see photo)

48V EZGO Summit II Charger Specifications

• This 48V battery charger is designed for Flooded Wet Cell / Lead-Acid / AGM / Gel / Lithium Batteries (profile must be enabled via bluetooth for battery type)
• Bluetooth Smartphone App for Apple and Android
• Quick read LED indicator light
• 8.5' RXV and TXT48 Charging Cord
• Input voltage: 100-240VAC
• Output voltage: 36-48VDC
• Output current: 13.5-25ADC
• Max Efficiency >90%
• Operating Temperature: -25ºC to 60ºC (-13ºF to 140ºF)
• Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
• Weight: 8.43 Pounds (3.82kg)
• Dimensions: 11.3x7.2x3.6 Inches (287x182x93mm)
• Safety and Regulatory
  • Efficiency: DOE Code of Federal Regulations, CEC Appliance Efficiency Regulations, Title 20; 10 CFR Part 430, NRCan Energy Efficiency Regulations
  • Safety / Emissions: UL recognized/listed; cUL certified: FCC Part 15; ICES-003; EN safety, emissions, immunity; CE Certified; ACMA RCM (C-Tick)
• OEM Manufacturer & Part Number: 622418 EZ, 8008 NI

48V EZGO Charger Safety Features
