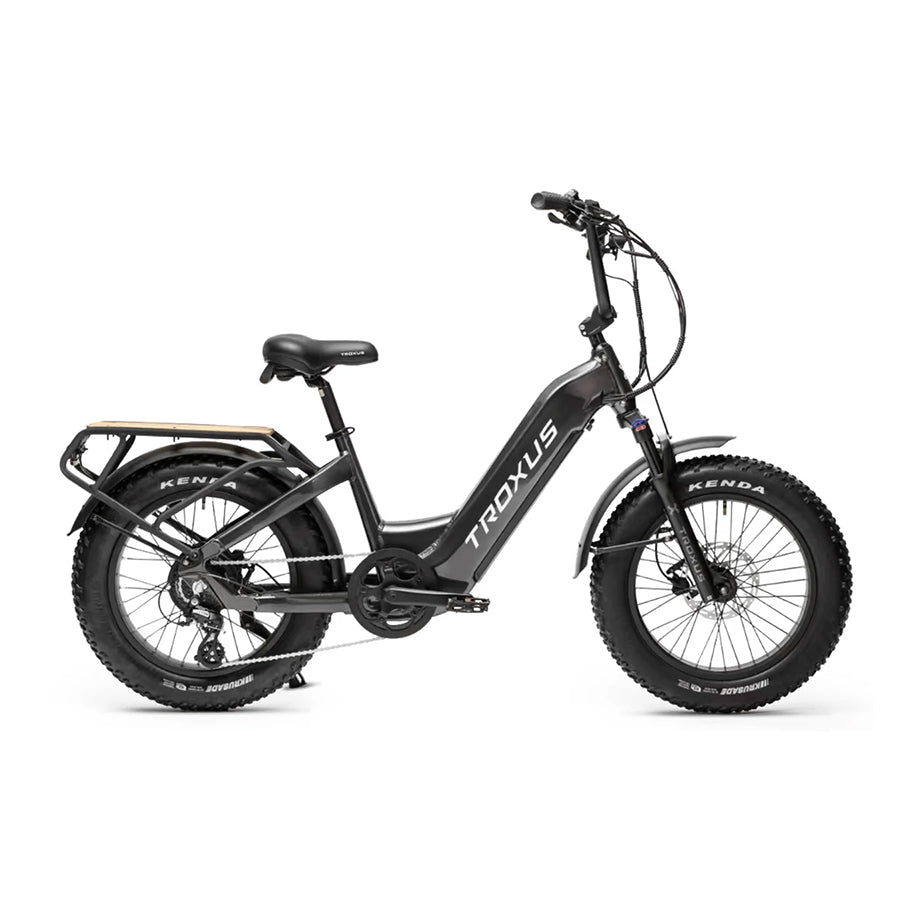

  • 2024 Troxus Lynx Plus ebikes available in 3 different colors: charcoal, dusk blue, and red metallic.
  • Angled front view of the red metallic 2024 model Troxus Lynx Plus Fat Tire E-Bike for sale near 67501 zip code.
  • Troxus promotional youtube video of the new Lynx Plus E-bike for sale by authorized Troxus dealer Salt City Golf Cart.
  • Rear angled view showing Bafang 750 watt hub motor and rear alloy rack of the Troxus Lynx Plus E-bike, with 400 pound load rating capacity.
  • Close up view of the manufacturing details and integrated LED brake light on the rear alloy cargo rack of the Lynx ebike.
  • Side profile view showing the Shimano 8-speed gearset and alloy wheels with 20" Kenda fat tire on the new Lynx Plus ebike.
  • Detailed view of the handlebar set, electronic controls, shift lever, and bluetooth display on the Lynx fat tire ebike.
  • Closeup view of the rear brake rotor, adjustable kickstand, and 750 watt Bafang hub motor on the new Troxus Lynx Plus fat tire ebike which includes a 5-year warranty.
  • Detailed view of the high performance twin piston front brake system and stainless hub spokes on the Lynx Plus ebike.
  • Quick reference display of features and selling point of the Lynx Plus ebike.
  • Detailed view of the integrated rear cargo rack with wood floor inlay on the Lynx Plus ebike.
1 12

TROXUS®

Lynx Plus 20" Fat Tire Step-Through E-Bike | TROXUS®

Lynx Plus 20" Fat Tire Step-Through E-Bike | TROXUS®

$1,899.00 USD
$1,899.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Available for purchase in-store only. Call (620) 694-6512 for details and availability. Or message us at sales@saltcitygolfcart.com.

View full details

Better than ever! - The new 2024 Lynx Plus compact fat tire 750W E-bike by TROXUS® is a perfect blend of high performance and convenience!



Banner with Troxus Lynx Plus e-bike features and specifications.

This model is a great option for street or trail! Boasting a compact frame and 20" Kenda Fat-Tires, the Lynx Plus is rugged, strong, and capable. A 750 Watt Bafang® motor and switchable power modes - Torque and Cadence - are just a few of the features that make this bike stand out in the crowd.

All of this power pairs well with the 48-Volt, 20Ah (960Wh) Lithium Ion battery pack to ensure you have the range you need, when you need it. Max speed tops out at 28 MPH with Pedal Assist and maximum range is a whopping 90 Miles per charge!

View the complete Troxus E-Bike Catalog here.

TROXUS Lynx Plus 20" Features

Promotional features and details of the new Troxus Lynx Plus 20" fat tire e-bike.

Electronic System

  • Motor: Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
  • Battery: UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
  • Display: Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
  • Throttle: Thumb Throttle on Handlebar
  • Sensor: Switchable Torque And Cadence Sensor Modes

Components

  • 6061 T6 Aluminum Step-Through Frame
  • Front Suspension Fork Travel 80 MM
  • KMC® 1/2" x 3/32" Chainset
  • Aluminum 46T Square Taper 165 MM w/ Single Alloy Chainguard Crankset
  • Shimano® RD-M310-L Altus 8-Speed Rear Derailleur
  • Shimano® 8-Speed 12-32T Cassette
  • Shimano® 8-Speed Shifter
  • Square Taper Sealed Bearing Bottom Bracket Set w/ Integrated Torque & Cadence Sensors
  • Kenda® 20" x 4" Tires w/ Anti-Puncture K-Shield
  • Alloy 36H 110 MM 3/8" Axle Front Hub
  • Bafang® 48V 750W 86Nm Rear Hub
  • Alloy Double Wall 20" x 4" Rims w/ Eyelets
  • Stainless 13G Front and 12G Rear Spokes
  • Tektro® Hydraulic Brakes w/ Sensors
  • 180 MM Front and 160 MM Rear Brake Rotors
  • Troxus Comfort w/ Back Handle Saddle
  • Adjustable Alloy 30.9 x 400 MM Seat Post
  • Alloy 35 MM Seat Post Clamp w/ Quick Release
  • Alloy Top-Load 30º Angle 50 MM Extension Stem
  • Alloy 6061 T6 31.8 x 680 MM Wide, 261 MM Rise Handlebar
  • Ergonomic Comfort Grip
  • Alloy 9/16" Platform Pedals w/ Reflectors
  • Threadless Locking Internal 1-1/8" Headset

Lynx Plus Speed / Range / Weights

  • Max Speed: Up to 20 MPH on throttle, 28 MPH on Pedal Assist
  • Range: Up to 90 Mils Per Charge
  • Weight Limit: 400 Pounds
  • Net Weight: 77.2 Pounds
  • Rack: Alloy Front and Integrated Rear
  • Fenders: Alloy w/ Alloy Hardware
  • Kickstand: Adjustable Side Model
Lynx Geometry
Measurements, angles, and geometry of the Troxus Lynx Plus fat tire e-bike.
  • Frame Size: Universal
  • Wheel Size: 20"x4.0"
  • Fork Travel: 80 MM
  • Fork Height: 440 MM
  • A - Seat Tube Length: 375 MM
  • B - Seat Tube Angle: 71º
  • C - Head Tube Length: 145 MM
  • D - Head Tube Angle: 68º
  • E - Effective Top Tube Length: 645 MM
  • F - Bottom Bracket Height: 285 MM
  • G - Bottom Bracket Drop: 10 MM
  • H - Chainstay Length: 425 MM
  • I - Fork Offset: 46 MM
  • J - Wheelbase: 1148 MM
  • K - Frame Reach: 460 MM
  • L - Frame Stack: 538 MM
Cadence v. Torque Mode Explained

Most 2024 Troxus models are equipped with components that allow for switching between Cadence and Torque sensor modes!

  • Switch directly at the display, according to rider preferences.
  • Torque mode allows for a more natural, smoother riding experience while extending battery runtime when pedaling.
  • Torque mode is designed to more fully use the rider's power output.
  • Cadence mode allows for riding with less pedal effort as it detects small crankarm rotations anywhere from 1/4 to 1/2 of a full turn.
  • Cadence mode allows a rider to maintain a more constant speed with as little pedaling as possible (in general, more assist, less range).
  • Cadence mode functions well under normal, active pedaling as well.
  • Throttle assist works equally well under both modes.
  • Switch between modes with an easy, momentary press on the basic display interface.
  • Cadence mode will display a bicycle and cyclist icon on the lower portion of the display.
  • Torque mode is indicated by the absence of the cyclist icon.
Compatible Troxus Accessories
  • Troxus Front Rack and Basket Holder
  • Troxus Basket
  • ROCKBROS Leakproof Thermal Meal Bag for Rear Rack
