BigBattery® Lithium Battery Conversion Kit - EAGLE 2 - 24 Volt 128 AH Rating with Charger - FREE SHIPPING! Local Customers, we're able to install for you as well!
Experience improved performance and efficiency for your industrial needs with the direct replacement size GC2 form factor LFP (Lithium Iron Phosphate) Lithium Kit. This high performing LiFePO4 kit provides a superior option to traditional lead-acid batteries, offering increased run time and elite technology. Elevate your equipment's capabilities with this effortless replacement solution!
High-Performance 24-Volt Lithium Batteries: BigBattery's Eagle 2 batteries provide a fast charging, long lasting, and no maintenance alternative to lead-acid batteries. These features result in increased operational uptime and lower maintenance expenses over the operational lifetime of your equipment. Additionally, the 128 Amp Hour rating helps to ensure that you'll have the power you need, when you need it.
NOTE: This kit is not designed to be a scissor lift turnkey conversion. For a complete scissor lift conversion, please purchase the Big Battery Scissor Lift Conversion Kit. Please refer to the minimum weight specs that should be stamped in your product’s battery bay and in your spec sheet. It is the owner’s responsibility to ensure you are above your minimum battery bay weight.
-Awesome 12-Year BigBattery Warranty!-
BigBattery 24V Lithium Kit Includes
- Qty 2: Eagle 2 LiFePO4 24V 64Ah Lithium Batteries
- Qty 1: Eagle SOC "State of Charge" Meter w/ Wiring
- Qty 1: Eagle 24V 30A Lithium Charger w/ Ring Terminals
- Qty 1: 4AWG Black Cable w/ Ring Terminals - 11 Inches
- Qty 1: 4AWG Red Cable w/ Ring Terminals - 11 Inches
BigBattery Electric Scissor Lift Lithium kits are compatible with most major brands using (4) 6-Volt configuration for 24 Volt systems. JCB, Skyjack, JLG, Genie, MEC, Hy-Brid, LGMG, and other models. Please contact us for more information if you are unsure about compatability.
Great For

LiFePO4 Eagle2 Battery Specs
Specification | Details |
---|---|
SKU | FEAGL-24016-G2-0CH |
GTIN-12 (U.P.C.) | 850061252234 |
System Voltage | 24V |
Nominal Voltage | 25.6V |
Chemistry | LiFePO4 |
kWh Capacity | 1.63kWh |
Ah Capacity | 64Ah |
Charging Voltage Range | 27.8 - 29V |
Max Charge Voltage | 29.2V |
Operating Voltage Range | 24 - 28.8V |
Suggested Low Voltage Cutoff | 24 - 25.4V |
BMS Cutoff Range | 21 - 23.5V |
Cell Configuration | 8S |
Max Continuous Discharge Current | 100A |
Max Continuous Power | 2560W |
Max Discharge Peak Current | 200A (Max 5 seconds) |
Max Charge Current | 64A |
Charge Temperature Range | -4°F - 131°F (-20°C - 55°C) |
Discharge Temperature Range | -4°F - 140°F (-20°C - 60°C) |
Optimal Discharge Temperature Range | 59°F - 95°F (15°C - 35°C) |
Storage Temperature Range | 23°F - 95°F (-5°C - 35°C) (Max 3 months), 32°F - 77°F (0°C - 25°C) (Max 12 months) |
Battery Weight | 38 lb (17.2 kg) |
Total Weight | 248 lb (112.5 kg) |

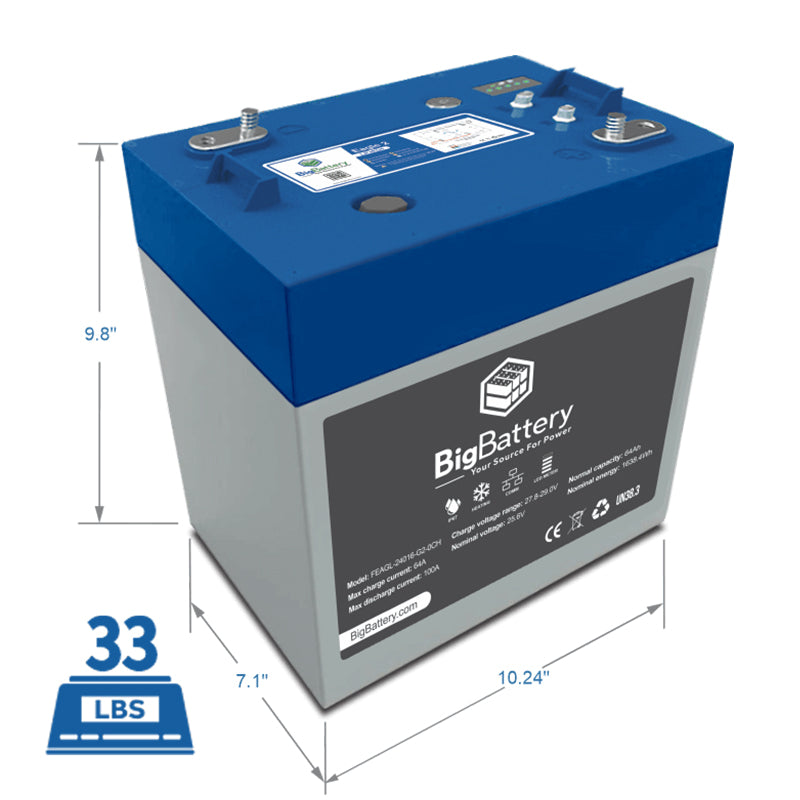

Depth | 7.1 in (180 mm) |
Width | 10.2 in (260 mm) |
Height | 10.8 in (274 mm) |
Max Connections | Up to (10) Parallel |
Protection Rating | IP67 / NEMA 6 |
Communications | CANBus |
Self-Heating | Yes |
BigBattery Lithium Documentation
Document | Link |
---|---|
FEAGL-24016-G2-0CH Spec Sheet | Click Here for Eagle2 LiFePO4 Battery Specifications |
User Manual | Click Here for Eagle2 24V and 48V User Manual |
CE Certificate | Click Here for BigBattery CE Declaration of Conformity |
EMC Certificate | Click Here for BigBattery EMC Declaration of Conformity |
UN38.3 Certificate | Click Here for BigBattery UN38.3 Declaration of Conformity |
Lithium 24V Charger Specs
Specification | Details |
---|---|
SKU | PWS051 |
Voltage | 24V |
Input Voltage | 110V AC |
Max. Output Voltage | 28.8V DC |
Max. Output Current | 30A |
Output Frequency | 50/60Hz |
Connection Type | Ring Terminals |
Dimension | Details |
---|---|
Weight | 4.9 lbs |
Depth | 6.2 in |
Width | 9.1 in |
Height | 3.2 in |
DC Cable Length | 21.7 in |
AC Cable Length | 19.3 in |
FAQs
❓Can I use Lithium batteries in a scissor lift?
As long as you verify your operational voltage (this is almost always 24-volts in standard scissor lifts), you can certainly swap out your old worn out lead acid batteries for the newest LiFePO4 lithium battery technology! Consider the following information:
Primary Benefits of Lithium Batteries in Scissor Lifts
-
- Extended Lifespan: Lithium-ion scissor lift batteries typically last much longer than traditional lead-acid batteries, reducing replacement frequency. BigBattery Eagle 2 batteries carry a 12-year Warranty.
- Maintenance-Free: Unlike lead-acid batteries, lithium batteries do not require regular maintenance like topping off water levels.
- Rapid Charging: Thanks to very different chemistry, LiFePO4 batteries charge faster and more efficiently, reducing downtime and increasing uptime. Get it? Scissor Lift = Uptime...... Sorry, dad jokes sprinkled in every now and then.
- Lightweight: Lithium batteries are considerably lighter than lead-acid batteries, which normally is a good thing in mobile applications. However, in mobile and industrial lift uses, counterweights need to be installed in the empty lead acid battery spots to ensure compatibility with manufacturers' designed stability weight ratings. Great news, BigBattery conversions include these counterweights so you have everything you need!
- Higher Energy Density: LiFePO4 (Lithium Ion Phosphate) technology provides consistent and reliable power in a small form factor, which is crucial for equipment like scissor lifts.
- Eco-Friendly: Longer lifespans and more efficient energy storage and discharge help lithium technology to reduce its impact on the environment.
Considerations Before Switching to Lithium
-
- Compatibility: Verify that your scissor lift is compatible with lithium batteries. Some older models may not support them without modifications.
- Cost: Lithium batteries have a higher upfront cost, but their long-term benefits often outweigh the initial expense.
- Charging Infrastructure: Ensure you have the proper charging system for lithium batteries. Their chargers are different from those for lead-acid batteries.
- Operating Environment: Lithium batteries perform well in various conditions, but extreme temperatures (very high or low) can affect their performance.
❓How can I tell if my scissor lift is compatible?
Consult the Manufacturer: Check the scissor lift's specifications manual or contact the manufacturer to confirm if lithium batteries are supported. Typically, there are very few models that would have compatibility issues.
Battery Specifications: Match the voltage, capacity, and physical size of the lithium battery with the original battery specifications. Most industrial and mobile slab scissor lifts use a 24V power system, matching this BigBattery complete conversion kit.
Contact Us: Don't hesitate to either give us a call or shoot us an email. The more information you can provide, the better! If you email, attach some photos of your specific lift model, as well as the battery compartment door or tray so we can take a look at it. Remember, the more information, the better! Call us at (620) 694-6512 or email us at sales@saltcitygolfcart.com.
