EZ-GO RXV (2008-2021 w/ Metal Tray) 48V 105AH Lithium Battery Bundle | EB®

ECO Battery® EZ-GO RXV Lithium Battery Golf Cart Conversion Kit - Skinny Style - 48 Volt 105 AH Rating - FREE SHIPPING!

The 51V 105Ah Skinny Style E-Z-GO RXV (2008 and Newer) Lithium Battery is a highly versatile lithium golf car battery. This kit is designed specifically for the RXV models that use a metal battery tray. The cube form factor installs cleanly and the "skinny" design and RXV-specific mounting hardware makes securing your battery simple and quick. Enjoy great build quality, bluetooth connectivity, 8-year warranty, increased range, and quicker charge times with this Eco Battery LiFePO4 golf cart battery. Additionally, you will appreciate the low self-discharge rates when stored, the approximately 350 pounds of weight savings, and the extended service life offered by this new lithium golf cart battery bundle!

There are many variables that contribute to lithium battery extended ranges such as: modifications, load, driving styles, and terrain. This lithium conversion kit will provide driving ranges of 20-50 miles.

EZ-GO RXV ECO Battery Lithium Conversion Installation Video

ECO Lithium Conversion Kit Includes

• 51V 105Ah LifePo4 Battery "Skinny" - Nivel/Eco Battery # A-051105-03
• 51V CAN Charger (Locking Quick Connect) - Nivel/Eco Battery #A-1055
• DC-DC 12V Converter (40V-90V Input) - Nivel/Eco Battery #A-1272
• CAN Digital 5V Gauge Kit - Nivel/Eco Battery #A-3102
• EZ-GO RXV Charge Port (Locking) - Nivel/Eco Battery # A-4032

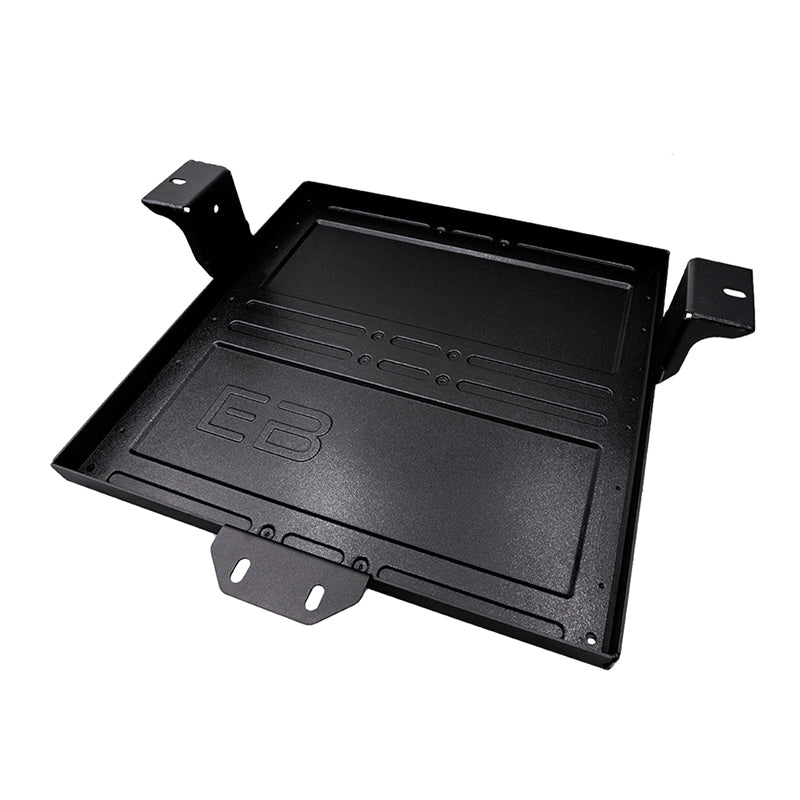

• EZGO RXV Battery Tray - Nivel/Eco Battery #A-8102
• Bolt Hardware for 51V Skinny, 70V - Nivel/Eco Battery #A-8003

ECO Lithium B-3221 Fitment

• EZ-GO RXV 2008 and Newer w/ Metal Battery Tray. If your RXV model is equipped with a plastic battery tray, you will need Eco Battery "Thru-Hole" Bundle #B-3232.

ECO 48V Lithium Battery Specifications

• Dimensions Inches (LxWxH): 22″ x 9-3/4″ x 10-7/16″
• Dimensions Millimeters (LxWxH): 559 x 248 x 265
• Weight: 102.2lbs (46.3kg)
• Terminal Type: M8 Female
• Cell Configuration: 1P16S
• Case Material: Powder Coated Steel
• Enclosure Protection: Designed with IP67 Standard Rating
• Cell Type - Chemistry: Prismatic- LiFePO4
• Eco Part #B-3221

ECO Lithium 48V 105Ah Discharge Specifications

• Maximum Continuous Discharge Current: 175A
• Peak Discharge Current: 300A (30S)
• BMS Discharge Voltage Cut-Off: 43.2V
• Recommended Low Voltage Disconnect: 48.0V
• BMS Reconnect Voltage: 46.4V
• Discharge Temperature: -10 to 140°F

ECO Lithium 48V 105Ah Electrical Specifications

• Nominal Voltage: 51.2V
• Working Voltage: 43.2 - 58.4V
• Recommended Voltage: 48.0V - 57.0V
• Cells: 16
• Nominal Capacity: 105Ah
• Energy: 5,376Wh
• Capacity @ 25A: 252 min

• Self Discharge: 1% per Month

ECO Lithium 48V 105Ah Charge Specifications

• Recommended Charge Current: <52A
• Maximum Input Current: 105A

• BMS Charge Voltage Cut-Off: 59.2V

• Charging Temp. Range: 32°F to 130°F

ECO Lithium Communication and Updates

• Bluetooth: Bluetooth receiver
• CAN: CAN port for testing battery

Additional Downloads

• ECO Battery Lithium Compatibility Chart
• ECO Battery Quickstart Guide
• ECO Battery 8-Year Warranty Details
• ECO Battery 51V 105Ah Skinny Data Sheet
