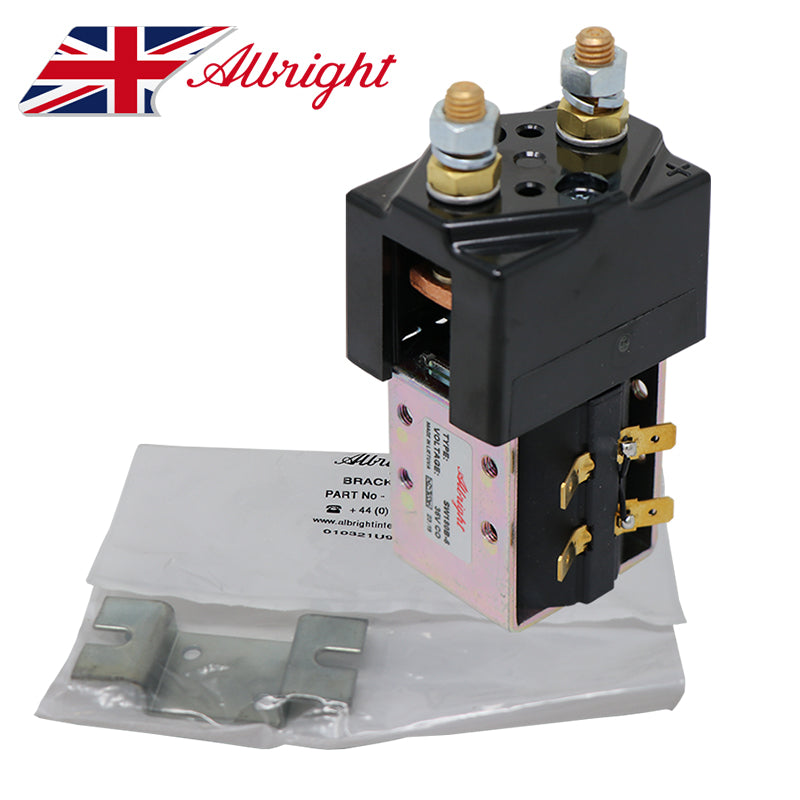

SW180 Single Pole Single Throw Normally Open 400-Amp 48-Volt Golf and Utility Cart Solenoid - FREE SHIPPING!

The SW180 has been designed for direct current loads, including motors used on electric vehicles such as industrial trucks, utility carts, and golf carts. Developed for both interrupted and uninterrupted loads, the SW180 is suitable for switching Resistive, Capacitive, and Inductive loads.

  • Interrupted Current - opening and closing on load with frequent switching (resulting in increased contact resistance).
  • Uninterrupted Current - no or infrequent load switching requirements (maintains a lower contact resistance).

The SW180 features single pole, single throw, double breaking main contacts with silver alloy tips. These silver allow contacts are weld resistant, hard wearing, and boast excellent conductivity. The SW180 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or the included mounting bracket. Mounting can be either horizontal or vertical. When mounted vertically, the M8 contact studs should point upwards. If downward installation is required, the contactor can be adjusted internally to compensate for this.

Albright Single Pole Contact Solenoid Specifications
