Bolt Energy®

48V 60AH Golf Cart Lithium Battery Professional Fleet Kit | Bolt Energy®

48V 60AH Golf Cart Lithium Battery Professional Fleet Kit | Bolt Energy®

Regular price $1,965.00 USD
Regular price Sale price $1,965.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

bolt-energy-logo-horizontal_240x240

Bolt Energy® Golf Cart Lithium Battery Conversion Kit - Professional - 48 Volt 60 AH Rating - FREE SHIPPING!

The 51V 60Ah "FLEET" is a highly versatile and affordable lithium golf car battery, suitable for almost all 48-volt electrical drivetrains. Compatibility is robust and able to be installed in all traditional golf carts as well as many non-traditional models. There are many variables that contribute to lithium battery extended ranges such as: modifications, load, driving styles, and terrain. This lithium conversion kit will provide driving ranges of 15-30 miles. *Ranges vary significantly based on many variables, including terrain, weight, tire height, speed, and wind resistance.

🎯 Find Bolt Energy USA lithium conversion videos here!

Best in the Biz 10-Year Bolt Energy Warranty!

Bolt Lithium Conversion Kit Includes

  • 51V-60Ah Lithium Battery
  • Bluetooth Receiver
  • SOC "State of Charge" Meter
  • Owners Manual
  • Qty 6: 3/8" Battery Ring Terminal Connectors
  • Qty 10: 10″ Tie-Down Straps
  • Bolt Energy USA Sticker
  • Waterproof High Speed Lithium Charger
  • All Necessary Mounting Brackets and Hardware
  • AC Hardwire Port
  • Deco Cover Plate
  • 30A Voltage Reducer
  • Qty 2: 40″ 2AWG Premium Battery Installation Cables
  • 48V- 400A High Performance Solenoid
  • Lead battery removal strap
  • 15' 12AWG Green Lighted Extension Cord
  • Bolt Energy 51.2V 60Ah Lithium Battery Datasheet

Bolt Energy golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

51.2V
Voltage
60Ah
Capacity
3.072KWh
Energy
ELECTRICAL SPECIFICATIONS
Nominal Voltage
51.2V
Nominal Capacity
60Ah
Bluetooth Enabled
Yes
Capacity @ 20A
180 min
Efficiency
99%
Self Discharge
1-3% per month
Maximum Modules in Parallel
3
MECHANICAL SPECIFICATIONS

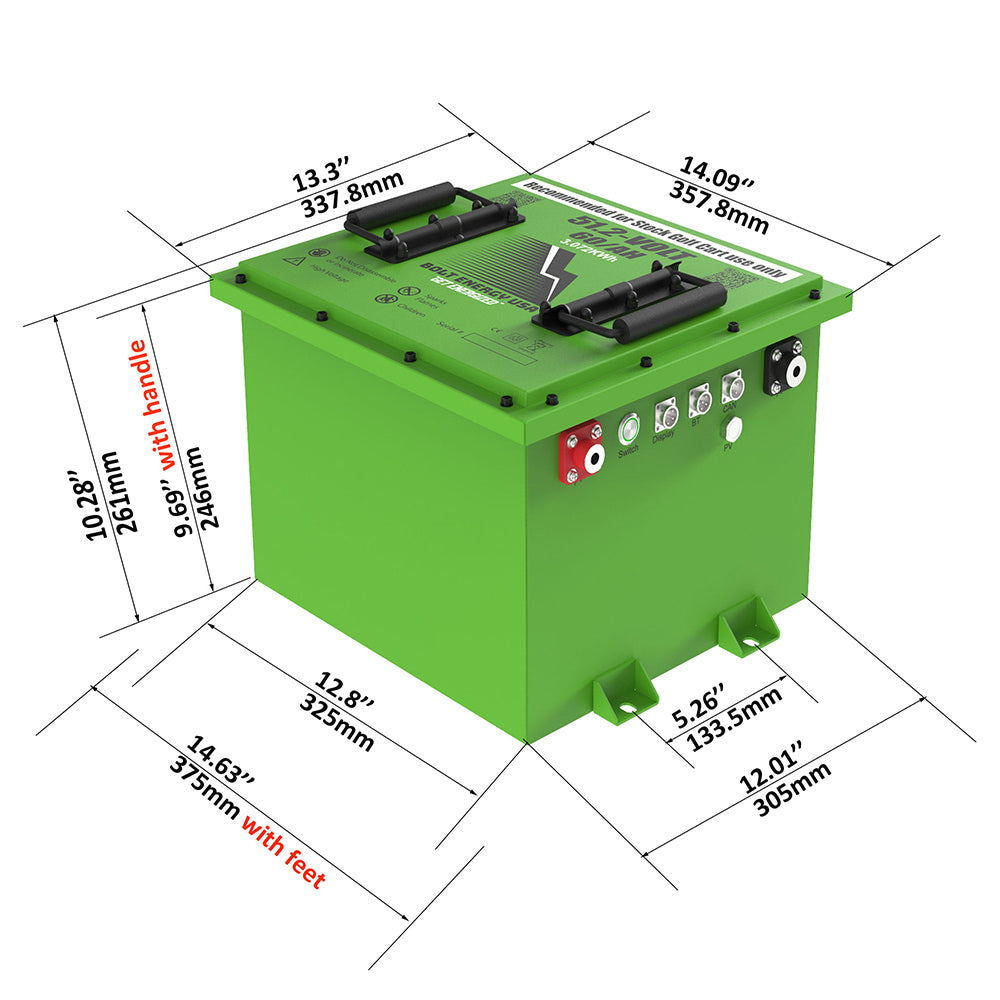

Dimensions (L x W x H)
12.8" x 12.01" x 10.28"
Weight
72.75 lbs
Terminal Type
M8
Terminal Material
Brass
Case Material
Steel
Enclosure Protection
IP66
Cell Type - Chemistry
Cylindrical LiFePO4
DISCHARGE SPECIFICATIONS
Max Continuous Current
185A
Peak Discharge Current
400A±12A (3S)
BMS Discharge Current cut-off
250A±7.5A (30S)
400A±12A (3S)
BMS Discharge Voltage Cut-Off
40V
Recom. Low Voltage disconnect
48V
Reconnect Voltage
41.6V
Discharge Temperature Range
-4F - 140F
CHARGE SPECIFICATIONS
Recommended Charge Current
< 30A
Maximum charging Current
60A
Input Current Cut-off
200A
Recom. Charge Voltage
40V - 58.5V
Charge Temperature Range
34F to 131F
BMS Charge Voltage Cut-Off
58.5V
Reconnect Voltage
<58.5V
BLUETOOTH FEATURES
Voltage
Overall and individual cell voltages
Remote technical support
Yes
Remaining Charge/Discharge Time
Yes
Firmware update
Yes
Cell Temperature
Yes
Current Amp Draw
Yes
Lifetime Power Cycles
Yes
COMMUNICATION
Bluetooth
Bluetooth receiver
BMS languages
CANBUS
SAFETY SPECIFICATIONS
Short Circuit
Yes
Low/High Temperature Discharging
Yes
Low/High Temperature Charging
Yes
Over-Current Discharging
Yes
Over-Current Charging
Yes
Pack Under/Over Voltage
Yes
Certifications
UL1642 | IEC62619 (Cells)
UN38.3 | MSDS (Battery)
Shipping Classification
UN 3480 | Class 9
ALL SAFETY FEATURES VISIBLE ON THE BOLT ENERGY BATTERY BLUETOOTH APP
Boltenergyusa.com
