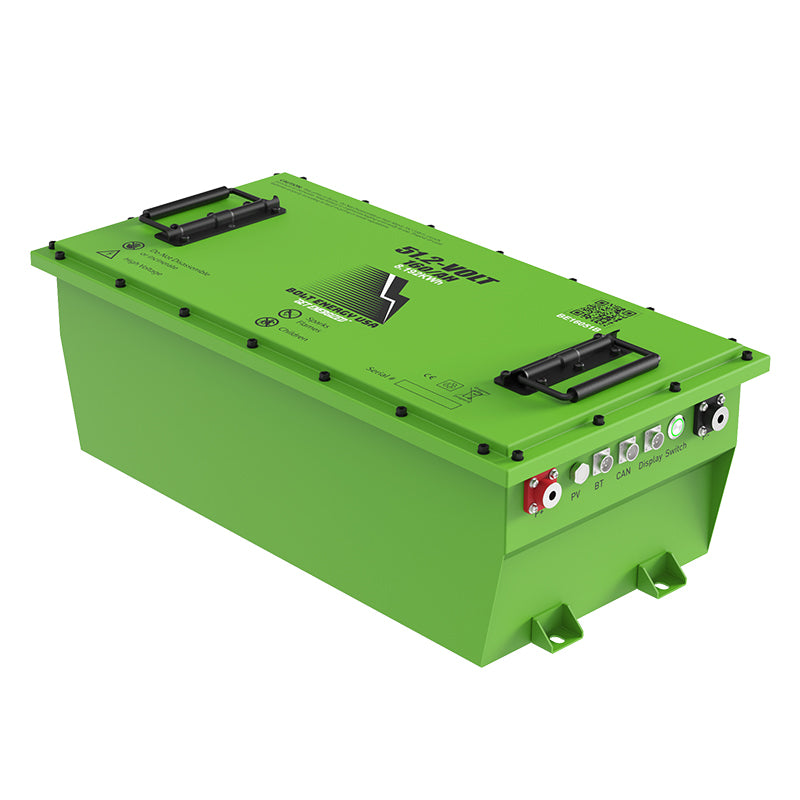

Bolt Energy® Lithium Battery Golf Cart Conversion Kit - "BIG" - Professional - 48 Volt 160 AH Rating - FREE SHIPPING!
The 51V 160Ah "BIG" is a highly versatile lithium golf car battery, suitable for almost all 48-volt electrical drivetrains. Compatibility is robust and able to be installed in 90% of traditional golf carts as well as many non-traditional models. The dynamically compact design of this high capacity lithium Bolt model allows it to be installed in most narrow battery compartments (please double check all dimensions of your battery compartment and measurement specs in photos).
🎯 Find Bolt Energy USA lithium conversion videos here!
There are many variables that contribute to lithium battery extended ranges such as: modifications, load, driving styles, and terrain. This lithium conversion kit will provide driving ranges of 45-65 miles.
Best in the Biz 10-Year Bolt Energy Warranty!
Bolt Lithium Conversion Kit Includes
- 51V-160Ah Lithium Battery "Big"
- Bluetooth Receiver
- SOC "State of Charge" Meter
- Owners Manual - Simple Installation Instructions
- Qty 6: 3/8" Battery Ring Terminal Connectors
- Qty 10: 10″ Tie-Down Straps
- Qty 2: 40″ 2AWG Premium Battery Install Cables
- Bolt Energy USA Sticker
- Waterproof High Speed Lithium Charger
- All Necessary Mounting Brackets and Hardware
- AC Hardwire Port
- Deco Cover Plate
- 30A Voltage Reducer
- 48V- 400A High Performance Solenoid
- Lead battery removal strap
- 15' Green 12 AWG Lighted Extension Charge Cord
- Bolt Energy 51.2V 160Ah "Big" Lithium Battery Datasheet
Bolt Energy golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.
Bolt 48V Lithium Conversion Specifications
- Dimensions (L x W x H): 29.57″ x 10.17″ x 9.13″
- Weight: 153lbs (69.4kg)
- Terminal Type: M8*1.5*25mm
- Cell Configuration: 1P16S
- Case Material: Powder Coated Steel
- Enclosure Protection: Designed with IP66 Standard
- Cell Chemistry: Prismatic- LiFePO4
- Part # BE16051B Pro-K
Bolt Lithium 48V 160Ah Discharge Specifications
- Maximum Continuous Discharge Current: 250A
- Peak Discharge Current: 520A ± 15.6A (30S)
- BMS Discharge Current Cut-Off:
- 260 A ± 7.8A (50S)
- 520A ± 15.6A (30S)
- BMS Discharge Voltage Cut-Off: 40V
- Recommended Low Voltage Disconnect: 48.0V
- BMS Reconnect Voltage: 41.6V
- Discharge Temperature: -4 to 149°F (-20 to 65°C)
Bolt Lithium 48V 105Ah Electrical Specifications
- Nominal Voltage: 51.2V
- Working Voltage: 43.2 - 58.4V
- Recommended Voltage: 48.0V - 57.0V
- Nominal Capacity: 160Ah
- Energy: 8,192Wh
- Capacity @ 25A: 384 min
- Efficiency: 0.99
- Self Discharge: <3% per Month
Bolt Lithium 48V 105Ah Charge Specifications
- Recommended Charge Current: 5 - 52A
- Maximum Input Current: 350A
- Charge Current Cut-Off: 375A
- BMS Charge Voltage Cut-Off: 58.5V
- Reconnect Voltage: <58.5V
- Charging Temperature Range: 34°F to 140°F (0-60°C)
Bolt Lithium Communication and Updates
- Bluetooth: Bluetooth receiver
- CAN: CAN port for testing battery
