Bolt Energy®

48V 105AH Golf Cart Lithium Battery Professional Thin Kit | Bolt Energy®

48V 105AH Golf Cart Lithium Battery Professional Thin Kit | Bolt Energy®

Regular price $2,595.00 USD
Regular price $2,995.00 USD Sale price $2,595.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

bolt-energy-logo-horizontal_240x240

Bolt Energy® Lithium Battery Golf Cart Conversion Kit - Thin - Professional - 48 Volt 105 AH Rating - FREE SHIPPING!

The 51V 105Ah "THIN" is a highly versatile lithium golf car battery, suitable for almost all 48-volt electrical drivetrains. Compatibility is robust and able to be installed in 90% of traditional golf carts as well as many non-traditional models. The skinny design of this Bolt model allows it to be installed in narrow battery compartments of EZ-GO RXV golf cart models without the need of mounting brackets - simply drill through the battery compartment tray floor and bolt down.

🎯 Find Bolt Energy USA lithium conversion videos here!

There are many variables that contribute to lithium battery extended ranges such as: modifications, load, driving styles, and terrain. This lithium conversion kit will provide driving ranges of 20-50 miles.

Best in the Biz 10-Year Bolt Energy Warranty!

Bolt Lithium Conversion Kit Includes

  • 51V-105Ah Lithium Battery "Thin"
  • Bluetooth Receiver
  • SOC "State of Charge" Meter
  • Owners Manual - Simple Installation Instructions
  • Qty 6: 3/8" Battery Ring Terminal Connectors
  • Qty 10: 10″ Tie-Down Straps
  • Qty 2: 40″ 2AWG Premium Battery Install Cables
  • Bolt Energy USA Sticker

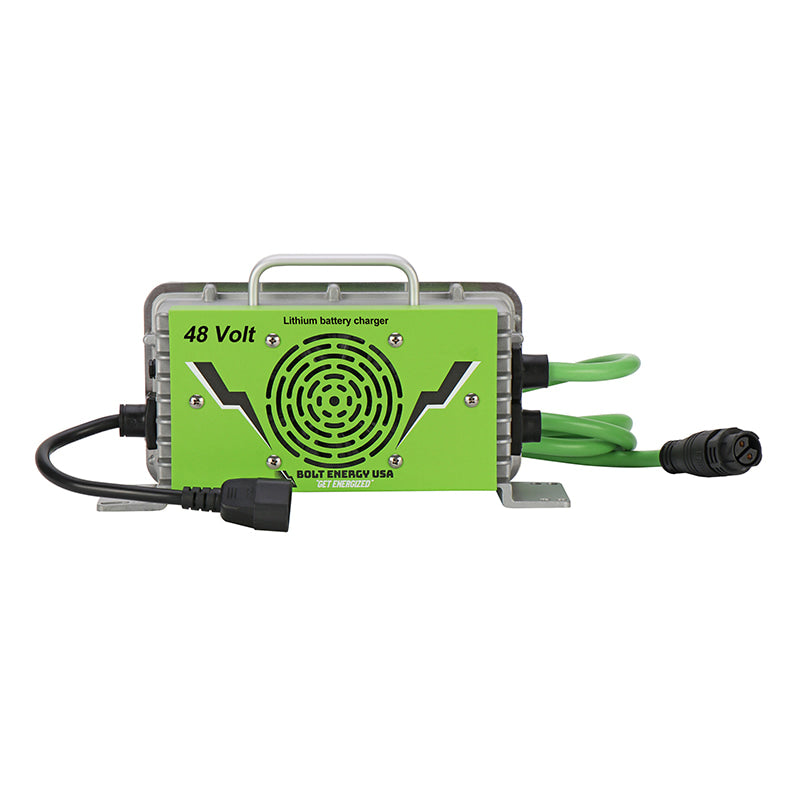

  • Waterproof High Speed Lithium Charger
  • All Necessary Mounting Brackets and Hardware
  • AC Hardwire Port
  • Deco Cover Plate
  • 30A Voltage Reducer
  • 48V- 400A High Performance Solenoid
  • Lead battery removal strap
  • Bolt Energy 51.2V 105Ah "Thin" Lithium Battery Datasheet

Bolt Energy golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.

51.2V
Voltage
105Ah
Capacity
5.376 kWh
Energy
ELECTRICAL SPECIFICATIONS
Nominal Voltage
51.2V
Working Voltage Range
43.2V - 58.4V
Recommended Voltage
48.0V - 57.0V
Nominal Capacity
105Ah
Energy
5,376Wh
Capacity @ 25A
252 min
Efficiency
99%
Self Discharge
<3% per month
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)
20" x 8.43" x 10.65"
Weight
105 lbs (47.63 kg)
Terminal Type
M8*1.5*25mm
Cell Configuration
1P16S
Case Material
Powder Coated Steel
Enclosure Protection
IP66 Standard
Cell Type - Chemistry
Prismatic LiFePO4
DISCHARGE SPECIFICATIONS
Max Continuous Discharge Current
250A
Peak Discharge Current
520A ±15.6A (30S)
BMS Discharge Current Cut-Off
260A ±7.8A (50S)
520A ±15.6A (30S)
BMS Discharge Voltage Cut-Off
40V
Recommended Low Voltage Disconnect
48.0V
BMS Reconnect Voltage
41.6V
Discharge Temperature Range
-4°F to 149°F (-20°C to 65°C)
CHARGE SPECIFICATIONS
Recommended Charge Current
5A - 52A
Maximum Input Current
350A
Charge Current Cut-Off
375A
BMS Charge Voltage Cut-Off
58.5V
Reconnect Voltage
<58.5V
Charging Temperature Range
34°F to 140°F (0-60°C)
COMMUNICATION
Bluetooth
Bluetooth receiver
CAN
CAN port for testing
BOLT ENERGY USA - "GET ENERGIZED"
Specifications subject to change without notice
